Description
The Lifud LF-GOE150YV024A is a 150W constant voltage LED power supply delivering 24V DC output at 6.25A — the “sweet spot” choice for medium-scale outdoor LED lighting in Australia. Combining IP67 waterproof protection, industrial-grade aluminum housing, and an ultra-compact 169.4mm footprint, this transformer delivers the core advantages of 24V technology (long transmission distance, minimal voltage drop, thinner cabling) at a more accessible price point and size than larger units. Backed by 93% efficiency, comprehensive electrical protections, and SAA/TUV/CE certifications, with a 5-year warranty and 1-metre AU plug included.
Best for: Medium-sized residential gardens, outdoor patios and decks, small commercial signage, alfresco dining lighting, courtyard illumination, and any installation where you need 24V’s long-distance benefits in a compact, cost-effective package. If your project is larger than a small garden but not quite commercial-scale, this is your transformer.
Why 150W 24V Is the “Sweet Spot”
Not too small. Not too large. The 150W 24V hits the capacity range that covers approximately 80% of residential and light-commercial outdoor LED installations.
|
Your Project |
Recommended Transformer |
Why |
|
Small garden path (5-8m strip) |
100W 12V or 75W 12V |
Minimal power needed |
|
Medium garden, patio, deck (8-15m strip) |
150W 24V ← YOU ARE HERE |
Perfect power + 24V distance benefit |
|
Large landscape, long facade (15-25m strip) |
250W 24V |
More power for extended runs |
|
Commercial signage, building exterior |
250W-400W 24V |
High-capacity commercial grade |
When to choose this 150W 24V over the 250W 24V:
● Your total LED load is under 120W (20% headroom on 150W)
● You’re lighting a medium-sized area, not an entire property
● Budget matters — save $18 and get exactly the power you need
● Installation space is tight — the 169.4mm body fits where 221mm won’t
● You’re a DIYer or small contractor, not a commercial electrician
24V Advantages Over 12V
|
Factor |
24V (This Transformer) |
12V Equivalent |
|
Transmission Distance |
15-20m with minimal voltage drop |
5-8m before dimming |
|
Current at Similar Power |
6.25A at 150W |
12.5A at 150W (hypothetical) |
|
Cable Required |
Thinner, cheaper cable |
Thicker, more expensive cable |
|
LED Strip Run Length |
~12m at 10W/m (recommended) |
~6-8m at 10W/m before voltage drop |
|
Installation Safety |
Lower current = safer handling |
Higher current = more heat, thicker cable |
> Bottom line: If your LED installation is 8 metres or longer, 24V is the smarter choice — even at 150W. You’ll get consistent brightness across the entire run with cheaper cabling and easier installation.
Key Features

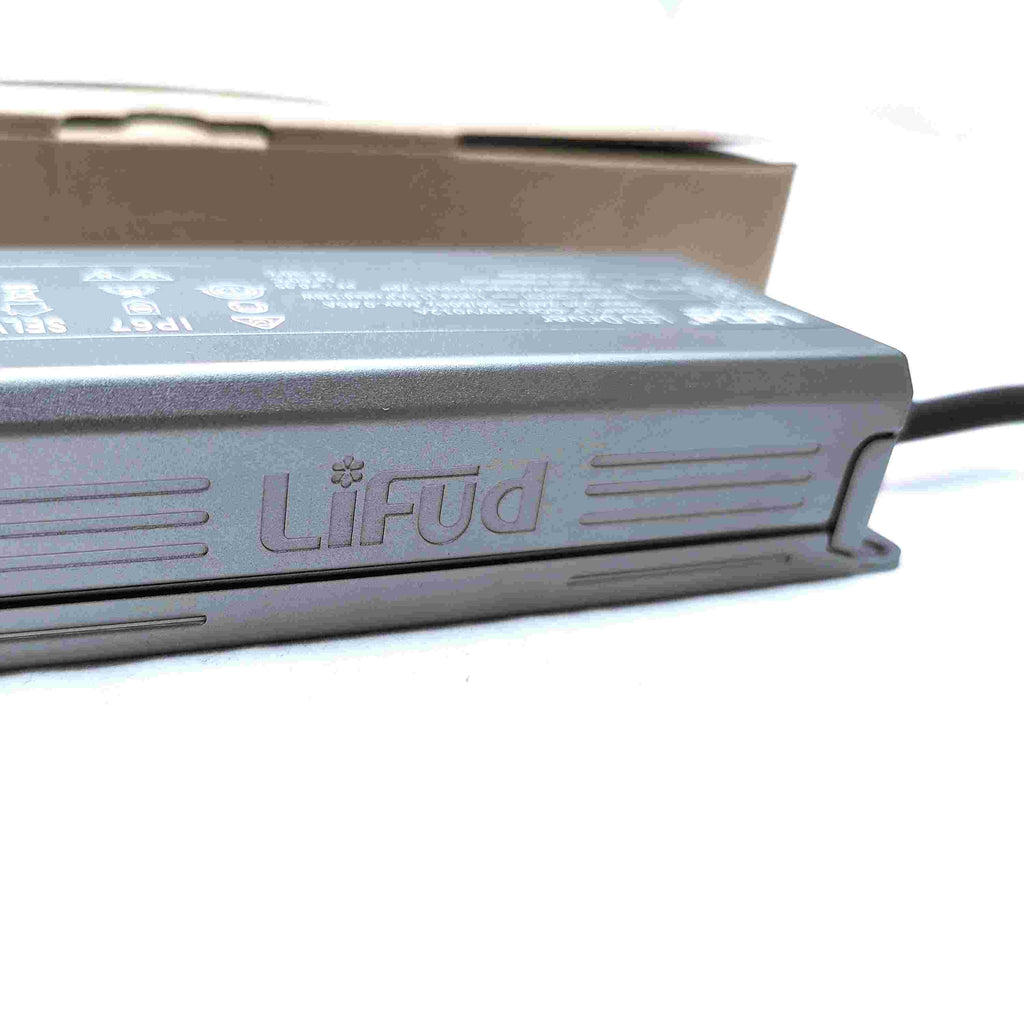

● IP67 Waterproof Rating — Fully sealed aluminum housing, dust-tight and protected against temporary water immersion to 1 metre. Built for Australian rain, humidity, and outdoor exposure.
● Ultra-Compact Design — At just 169.4mm × 61mm × 34mm, this transformer is 23% shorter than the 250W version. Fits easily into small outdoor junction boxes, pillar posts, and tight mounting locations where larger drivers simply won’t work.
● 24V DC — Long-Distance, Low-Drop Advantage — Experience 24V’s core benefit: significantly less voltage drop over long cable runs compared to 12V. Maintain consistent LED brightness across 15-20 metre cable runs without expensive thick cabling.
● 6.25A Low-Current Output — Lower amperage means less heat generation, safer installation, and the ability to use thinner, more affordable cable. Ideal for DIY enthusiasts and small contractors who prioritise safety and simplicity.
● 93% Energy Efficiency — Ultra-high efficiency keeps electricity costs down and extends product lifetime beyond 50,000 hours.
● Wide Input Voltage Range — Accepts 100-277VAC (90-305V limit), fully compatible with Australian 240V mains. No additional transformers needed.
● Adjustable Output Voltage — Built-in potentiometer allows fine-tuning from 22.08V to 25.92V (92-108%) to compensate for cable voltage drop or match specific LED requirements.
● Complete Protection Suite — Surge protection (6KV L-N, 8KV L/N-GND), over-voltage protection (≤32V auto-recovery), short circuit protection (hiccup mode auto-recovery), and over-temperature protection.
● Ultra-Low THD & High PFC — Power factor ≥0.95 for stable grid operation and compliance with Australian standards.

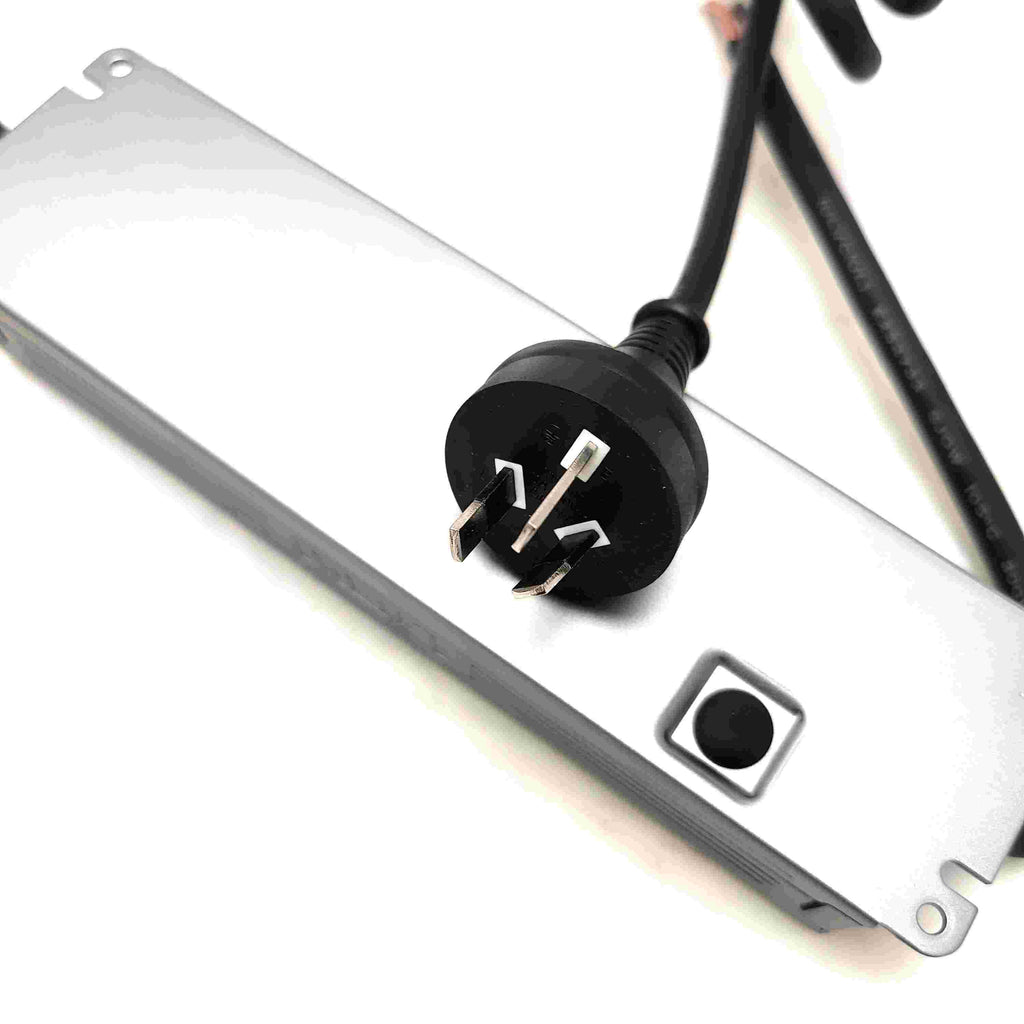

● Australian Ready — 1-metre AU plug cable included. SAA/RCM certified for full Australian electrical safety compliance.
● 5-Year Warranty — Comprehensive replacement warranty backed by Lifud.
Technical Specifications
|
Specification |
Value |
|
Model |
LF-GOE150YV024A |
|
Input Voltage |
100-277VAC (90-305V limit), 50/60Hz |
|
Output Voltage |
24V DC (adjustable 22.08-25.92V) |
|
Output Current |
6.25A max |
|
Output Power |
150W |
|
Efficiency |
Up to 93% |
|
Power Factor |
≥0.95 @ 230VAC full load |
|
THD |
Extremely low |
|
IP Rating |
IP67 (waterproof & dustproof) |
|
Operating Temperature |
● 20°C to +40°C (Tc ≤75°C for warranty) |
|
Storage Temperature |
● 40°C to +85°C |
|

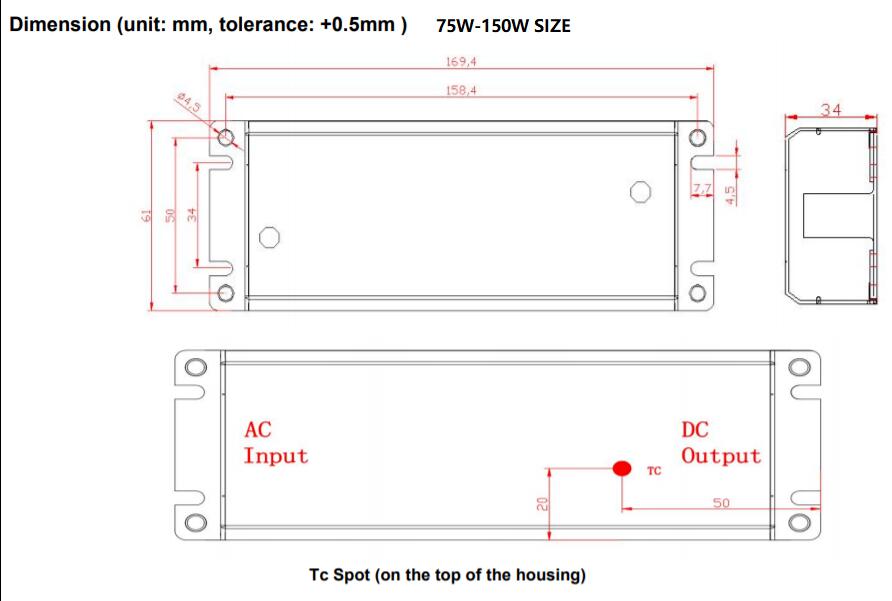

Dimensions |
169.4mm (L) × 61mm (W) × 34mm (H) |
|
Housing Material |
Aluminum alloy |
|
Flicker Percentage |
≤1% |
|
Input Connection |
1m AU plug cable |
|

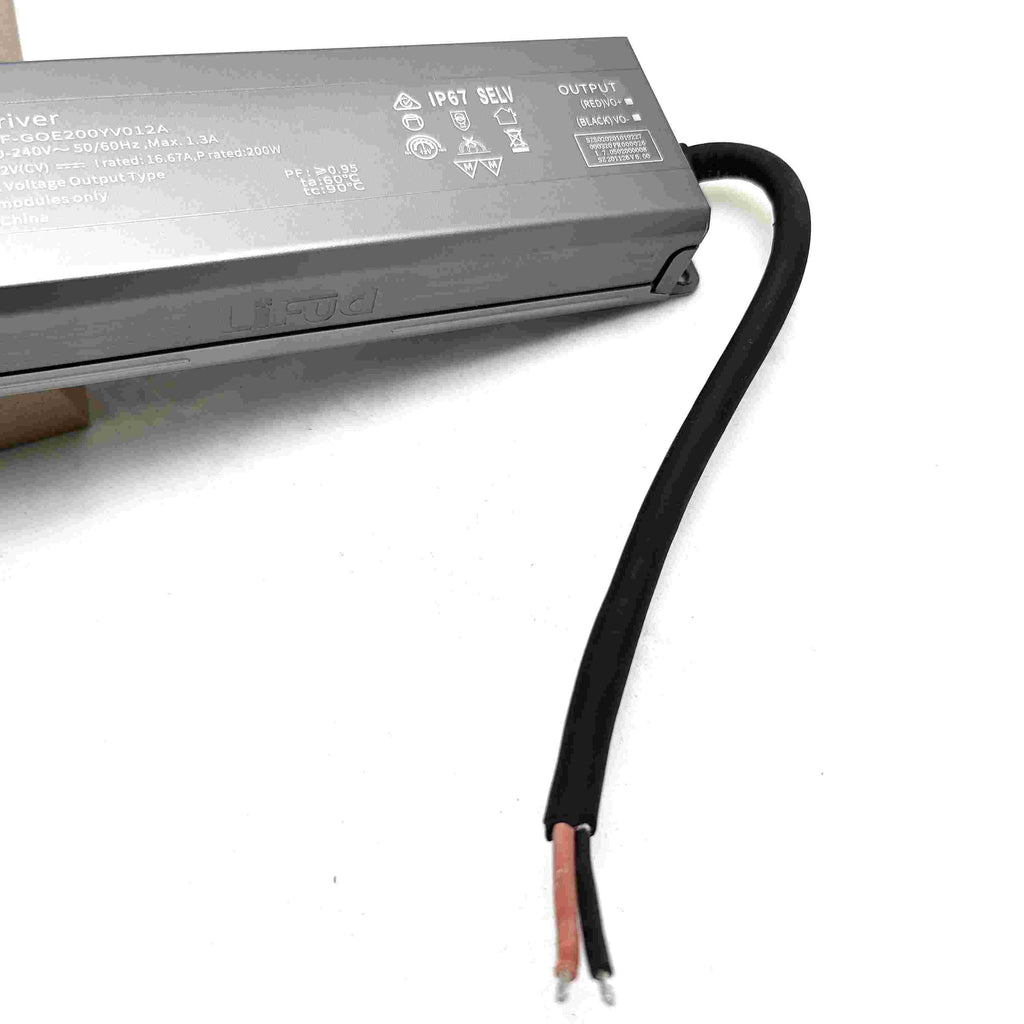

Output Connection |
Sheathed cable 250mm, 1.8m total |
|
Dimmable |
No |
|
Cooling |
Free air convection (no fan) |
|
Certifications |
TUV-ENEC, CE, RCM, SAA, UL (Class P), CB |
|
Warranty |
5 years |
Load Calculation Guide — How Much Can 150W Power?
Recommended maximum load: 120W (maintaining 20% headroom for optimal lifespan and warranty compliance).
|
LED Strip Type (24V) |
Max Length @ 150W |
Recommended Length @ 120W |
Current Draw |
|
14.4W/m (High brightness) |
~10.4 metres |
~8.3 metres |
5.0A |
|
10W/m (Standard) |
~15 metres |
~12 metres |
5.0A |
|
7.2W/m (Economy) |
~20.8 metres |
~16.7 metres |
5.0A |
|
24V LED Flood Lights (30W each) |
5 units |
4 units |
5.0A |
|
Mixed Load (strips + floods) |
Varies |
Up to 120W combined |
≤6.25A |
Typical “Sweet Spot” Installation Examples:
Example 1 — Medium Garden
● 10 metres of 10W/m LED strip along garden bed = 100W
● 1 × 24V LED flood light at 20W = 20W
● Total: 120W ✅ Perfect fit
Example 2 — Outdoor Patio/Deck
● 12 metres of 7.2W/m LED strip under deck railing = 86.4W
● 2 × 24V LED spotlights at 15W each = 30W
● Total: 116.4W ✅ Ideal load
Example 3 — Small Commercial Alfresco
● 8 metres of 14.4W/m high-brightness LED strip = 115.2W
● Total: 115.2W ✅ Within recommended range
> Not sure if 150W is enough? If your calculated total exceeds 130W, upgrade to the 250W 24V version for comfortable headroom. If under 80W, consider whether a 12V solution might suit your shorter cable runs.
Recommended Applications
Medium-Scale Residential
● Garden landscape lighting — 8-15 metres of LED strip along paths, garden beds, and water features
● Patio and deck illumination — Under-railing strips, deck edge lighting, pergola accents
● Courtyard and entrance lighting — Driveway markers, entrance pillars, gate illumination
● Outdoor entertainment areas — BBQ area lighting, outdoor kitchen task lighting
Small Commercial
● Café and restaurant alfresco dining — Warm ambient lighting for outdoor seating areas
● Small retail signage — Backlit lettering, window display accent lighting
● Office building entrance — Landscape lighting for medium commercial properties
● Accommodation exterior — Motel and B&B garden lighting, pathway illumination
Space-Constrained Installations
The compact 169.4mm length makes this transformer ideal for:
● Pillar posts and bollards with limited internal space
● Small outdoor junction boxes
● Concealed mounting behind structures
● Retrofit installations where larger transformers won’t fit
What’s in the Box
● 1 × Lifud 150W 24V DC IP67 LED Transformer
● 1 × Mounting hardware kit (screws & brackets)
● 1 × User manual
Installation Notes
⚠️ Important: This device must be installed by a licensed electrician in accordance with AS/NZS 3000 wiring rules and local regulations.
● Ensure adequate free air ventilation around the transformer
● IP67 rating protects against temporary immersion — do not permanently submerge or bury underground
● Maintain minimum 20% power reserve below rated 150W capacity (recommended max: 120W)
● For cable runs over 10 metres, use a voltage drop calculator or increase cable size
● The compact 169.4mm body allows flexible mounting in tight spaces — use included brackets
● 24V systems permit thinner cable than equivalent 12V systems — consult AS/NZS 3008.1.1 for sizing
Frequently Asked Questions
“What Size Do I Need?” — Power Selection Guide
Q1: What size LED transformer do I need for my project?
A: Choosing the right size depends on three factors: (1) total wattage of all your LED lights combined, (2) length of cable from transformer to LEDs, and (3) whether you need 12V or 24V.Quick selection guide:
|
Your Project Size |
Total LED Wattage |
Cable Distance |
Recommended Transformer |
|
Small garden path, 1-2 lights |
Under 60W |
Under 5m |
75W-100W 12V |
|
Medium garden, patio, deck |
60-120W |
5-15m |
150W 24V ← THIS PRODUCT |
|
Large landscape, long facade |
120-200W |
10-20m |
250W 24V |
|
Commercial, multiple zones |
200W+ |
15m+ |
250W-400W 24V |
Rule of thumb: Calculate your total LED wattage, then multiply by 1.25 to get your minimum transformer size. For example: 96W of LEDs × 1.25 = 120W minimum → 150W transformer is ideal.
Q2: Should I choose 150W 24V or 250W 24V?
A: Choose 150W 24V (this product) if:
● Your total LED load is 60-120W
● You’re lighting a medium-sized garden, patio, deck, or courtyard
● Your cable run is under 15 metres
● Budget matters — save $18 compared to 250W
● Space is tight — the 169.4mm body fits smaller mounting locations
● You’re a homeowner or small contractor doing occasional LED work
Choose 250W 24V if:
● Your total LED load is 120-200W
● You’re lighting a large property, long building facade, or commercial space
● Your cable run exceeds 15 metres with multiple LED zones
● You need maximum future expandability
● You’re a professional electrician doing regular commercial work
> Key insight: Most residential outdoor LED installations fall into the 60-120W range. The 150W handles this perfectly while costing less and taking up less space. Only upgrade to 250W if your calculations clearly demand it.
Q3: Should I get 150W 24V or 200W 12V?
A: This is a common crossroads. Here’s the decision framework:
|
Factor |
150W 24V (This Product) |
200W 12V |
|
Price |
$81.00 ✅ (cheaper) |
$93.00 |
|
Power |
150W |
200W (higher) |
|
Max LED Strip |
~12m @ 10W/m |
~16m @ 10W/m (longer) |
|
Cable Distance |
15-20m minimal drop ✅ |
5-8m minimal drop |
|
Cable Cost |
Thinner, cheaper ✅ |
Thicker, more expensive |
|
Size |
169.4mm (compact) ✅ |
221mm (longer) |
Choose 150W 24V if: Your cable run exceeds 5 metres OR you want cheaper cabling OR installation space is tight.
Choose 200W 12V if: Your LEDs are very close to the transformer (under 5m) AND you need maximum LED strip length AND cable cost isn’t a concern.
For the majority of medium outdoor projects, the 150W 24V wins on cable distance, cable cost, compact size, and price — despite having lower raw power.
Product-Specific Questions
Q4: How many metres of 24V LED strip can this 150W transformer power?
● A: At the recommended 80% capacity (120W):14.4W/m high-brightness strips: ~8.3 metres
● 10W/m standard strips: ~12 metres
● 7.2W/m economy strips: ~16.7 metres
● 24V LED flood lights (30W each): 4 units
For mixed installations, add up total wattage and ensure it stays under 120W.
Q5: Is the 150W 24V suitable for outdoor use in Australia?
A: Yes. The Lifud LF-GOE150YV024A is purpose-built for Australian outdoor conditions with an IP67 waterproof rating, SAA/RCM certification for Australian electrical safety, and reliable operation from -20°C to +40°C. The included 1-metre AU plug connects directly to Australian 240V outlets. Whether you’re in humid Brisbane, hot Perth, or cool Melbourne, this transformer handles it.Q6: What does the compact 169.4mm size mean for installation?
A: The 150W 24V is 23% shorter than the 250W version (169.4mm vs 221mm). This compact form factor makes it ideal for:
● Pillar posts and bollards with limited internal space
● Small outdoor electrical boxes
● Concealed mounting behind walls, steps, or garden features
● Retrofit jobs where the original transformer was smaller
● Any installation where physical space is at a premium
Despite the smaller size, it delivers the full 24V long-distance advantage and maintains the same 5-year warranty and IP67 protection as larger models.
Q7: Can I use this 24V transformer with 12V LED strips?
A: No. 24V output will permanently damage 12V LED strips. You must match power supply voltage exactly to your LED device’s rated voltage. If you have 12V LEDs, use the 200W 12V transformer instead. If you have both 12V and 24V zones, each requires its own transformer.
Installation & Technical
Q8: What cable size do I need for a 24V installation with this transformer?
A: With only 6.25A maximum output, this transformer is very forgiving on cable sizing:
|
Load |
Cable Length |
Recommended Cable Size |
|
Up to 3A (72W) |
Up to 10m |
1.0mm² |
|
3-5A (72-120W) |
Up to 10m |
1.5mm² |
|
5-6.25A (120-150W) |
Up to 10m |
2.5mm² |
For comparison, a 12V system at similar power would need 2.5-4mm² cable for the same runs. The 24V advantage means significant cable cost savings on medium installations.
Q9: Can I connect multiple LED strips to this transformer?
A: Yes. Connect multiple 24V LED strips in parallel (not series) to the output, keeping total wattage under 150W (recommended: 120W). Use terminal blocks rated for at least 6.25A. For runs over 10 metres from the transformer, consider a “home-run” wiring layout where you run separate cables to different zones rather than daisy-chaining.
Q10: What protections does this transformer have?
● A: Full electrical protection suite:Surge protection: 6KV line-to-neutral, 8KV line-to-ground
● Short circuit: Hiccup mode with automatic recovery when fault clears
● Over-voltage: Output shuts off above 32V, auto-recovers
● Over-temperature: Output reduces or shuts down when overheated, auto-recovers when cooled
Q11: Is this transformer dimmable?
A: No. The LF-GOE150YV024A is a non-dimmable constant voltage driver providing fixed 24V DC output. To achieve dimming, install a PWM dimmer controller between this transformer and your 24V LEDs, or select a dimmable driver from our range.

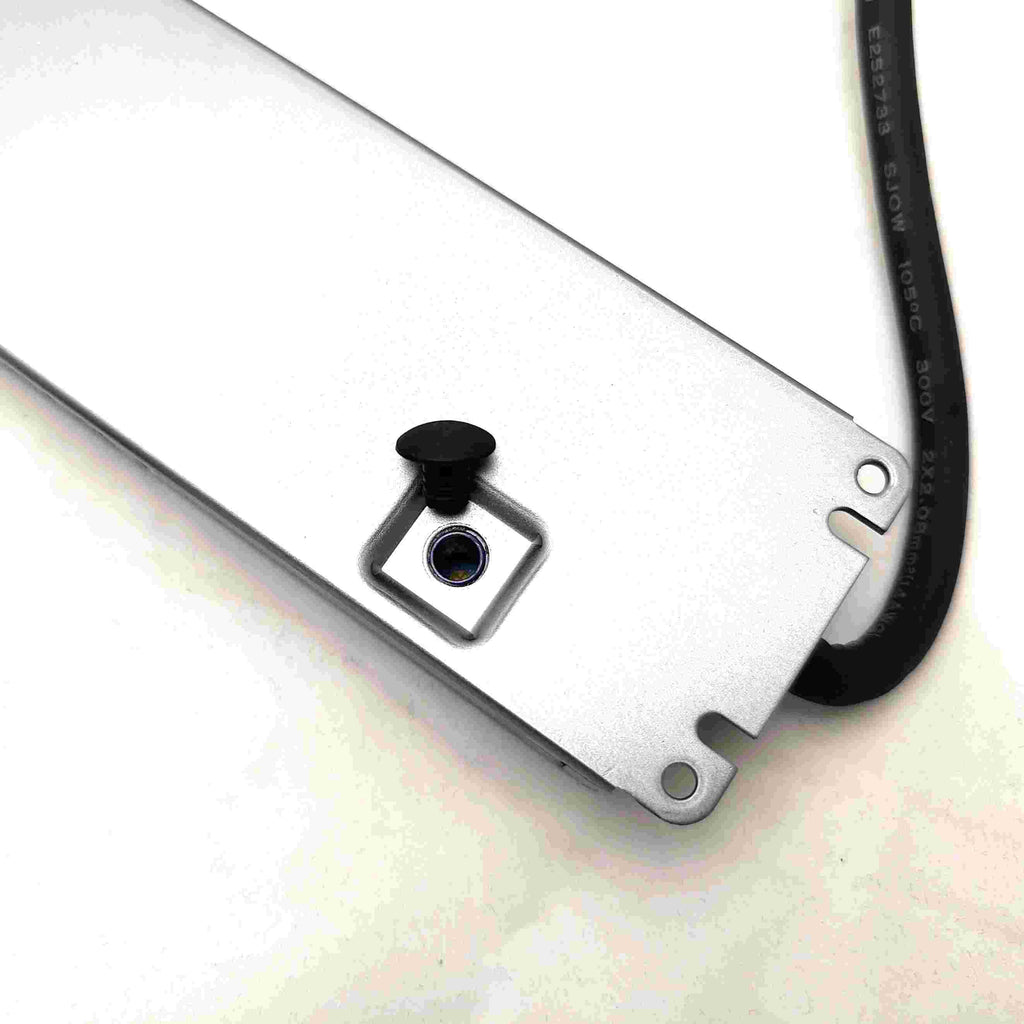

Q12: Can I adjust the output voltage?
A: Yes. A potentiometer at the base allows adjustment from 22.08V to 25.92V (92-108% of 24V). This is useful for compensating voltage drop on longer cable runs — you can slightly increase output to ensure your LEDs receive full voltage at the far end.Compatibility & Use Cases
Q13: Is this transformer suitable for coastal or pool areas?
A: The IP67 rating provides excellent protection against water jets and temporary immersion, making it suitable for humid pool areas and coastal installations. For best longevity in salty coastal air, mount in a covered, ventilated location. For permanent underwater submersion, an IP68-rated driver is required.
Q14: Can I use this transformer indoors?
A: Absolutely. While built for outdoor durability, it performs equally well indoors for under-cabinet lighting, display case illumination, workshop lighting, and architectural accent features. The IP67 rating, silent fan-free operation, and compact 169.4mm body make it versatile for any environment.
Q15: What does the 5-year warranty cover?
A: EDO LED Lighting provides a 5-year replacement warranty covering manufacturing defects, component failures under normal operation, and performance below specifications. Conditions: installation by a licensed electrician, operation within -20°C to +40°C (Tc ≤75°C), maintaining 20% load headroom, and proper ventilation. Excludes damage from overloading, improper installation, permanent submersion beyond IP67 specs, or unauthorised modification.
